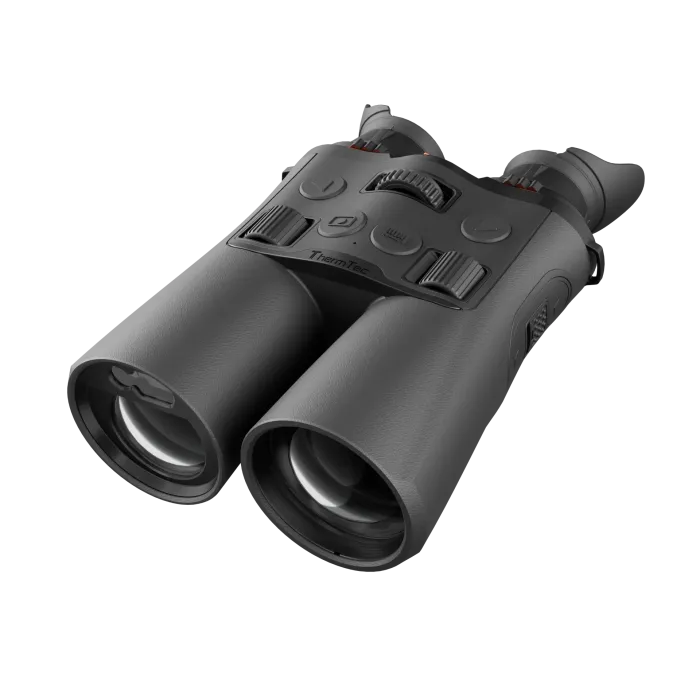

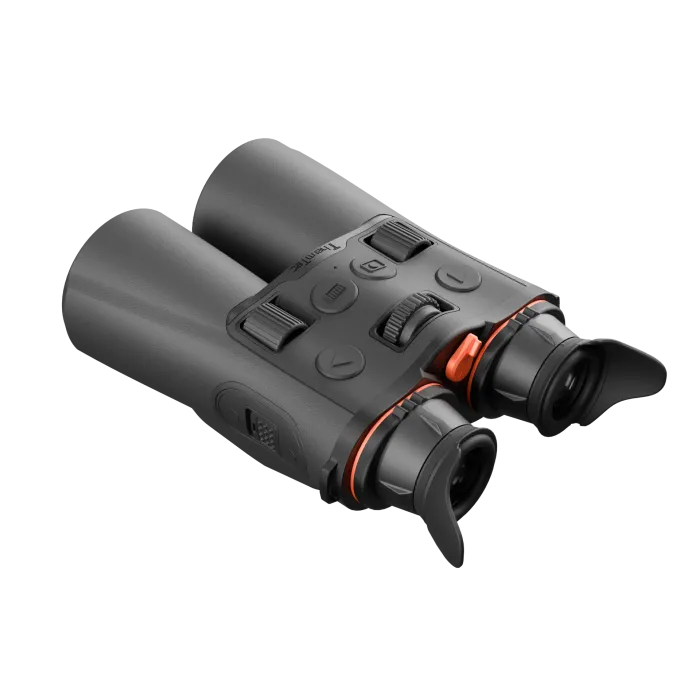

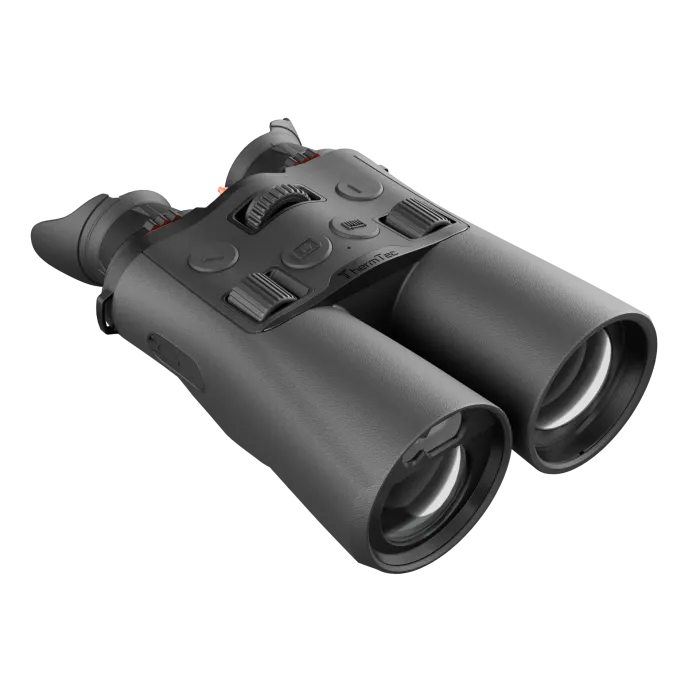

ThermTec Ventus 650L

• Thermal Sensor: 640×512, 12µm pixel pitch, <15 mK NETD @300K, spectral range 8–14µm
• Thermal Lens: 50 mm F1.0, Field of View 8.8°×7.0° / 15.4×12.3 m @100 m, magnification 3.7×–14.8× (4× digital zoom)
• Thermal Frame Rate: 50 Hz
• Detection Range: Thermal detection up to 2600 m
• Optical Channel: 4K UHD, 3536×3536 pixels, 2 µm resolution, 50 mm F1.4 lens, Field of View 8.1°×8.1° / 14.14×14.14 m @100 m, 4×–16× magnification (4× digital zoom)
• IR Illuminator: 850/940 nm switchable, night viewing range 850 nm: 400 m / 940 nm: 350 m
• Display: AMOLED, 1600×1200, 0.5-inch, 6 color palettes, EIS support
• Eye Relief / Exit Pupil / Diopter: 20 mm / 8 mm / ±5D, interpupillary adjustment 60–72 mm
• Advanced Features: Image mode, TSR algorithm, PIP, heat track, local album, hotspot, digital magnetic compass, azimuth
• Laser Rangefinder: Class 1, 905 nm, range 1000 m, ±1 m accuracy
• Photo/Video: Playback, audio recording, OSD recording, burn prevention
• Power & Battery: Replaceable 2× 18650 Li-ion batteries, Type-C power supply, up to 6 hours runtime
• Environmental Protection: IP67, working temperature -20°C to +50°C
• Dimensions & Weight: 164×127.6×73 mm, 833 g, 1/4-20-UNC mounting adapter

About the ThermTec Ventus Series

The ThermTec Ventus series integrates thermal imaging and high-resolution 4K optics into one multispectral binocular platform. Dual independent channels allow flexible operation, enabling thermal detection and optical identification in all conditions.

Designed for professionals and hunters, the series ensures rapid detection, accurate distance measurement, and detailed target confirmation without switching equipment.

About the Model (ThermTec Ventus 650L)

The Ventus 650L is the flagship model optimized for long-range observation. Its 50 mm F1.0 thermal lens extends detection range to 2600 m, while the 4K optical channel provides high-detail identification.

The integrated Class 1 laser rangefinder measures distances up to 1000 m with ±1 m accuracy. Advanced features such as TSR algorithm, PIP, heat tracking, hotspot, and digital compass ensure professional-grade performance in any environment.

Main Features

• Thermal: 640×512, 12 µm, <15 mK NETD, 8–14 µm
• Thermal lens: 50 mm F1.0, FOV 8.8°×7.0° / 15.4×12.3 m @100 m
• Thermal magnification: 3.7×–14.8× (4× zoom)
• Detection range: 2600 m
• Optical sensor: 3536×3536, 2 µm, 50 mm F1.4
• Optical FOV: 8.1°×8.1° / 14.14×14.14 m @100 m
• Optical magnification: 4×–16× (4× zoom)
• IR illuminator: 850/940 nm, viewing range 400/350 m
• Display: AMOLED 1600×1200, 0.5 inch, 6 palettes, EIS
• Laser rangefinder: Class 1, 905 nm, 1000 m, ±1 m
• Battery: 2× 18650 Li-ion, Type-C, 6 h
• Protection: IP67, -20°C to +50°C
• Weight/Size: 833 g, 164×127.6×73 mm

Warranty

ThermTec provides a 3-year manufacturer warranty covering defects in materials and workmanship under normal use conditions.

In the Box

• ThermTec Ventus 650L
• 18650 rechargeable batteries
• Battery charger
• USB-C cable
• Neck strap
• Carrying case
• Lens cloth
• User manual
