Kahles K525i 5-25x56 Refined

• 10 MIL Per Revolution Turrets on Both Axes with INDEXSTOP: The REFINED update delivers 10 MIL windage turrets matching the elevation design, with 100 clicks per revolution in 0.1 MRAD increments on both axes. The enlarged click spacing provides improved tactile feedback for precise adjustments under competition conditions. The INDEXSTOP — set 2–3 clicks below the zero indicator after zeroing — enables a fast, repeatable return to zero. The Revolution Indicator displays the current turret revolution at a glance via a mechanical indicator pin, and the patented TwistGuard prevents unintentional windage adjustment without requiring any locking action.

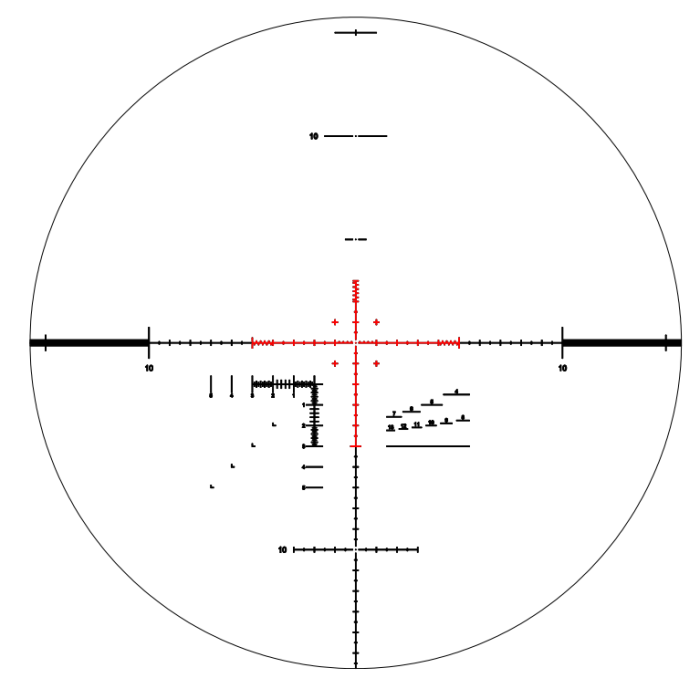

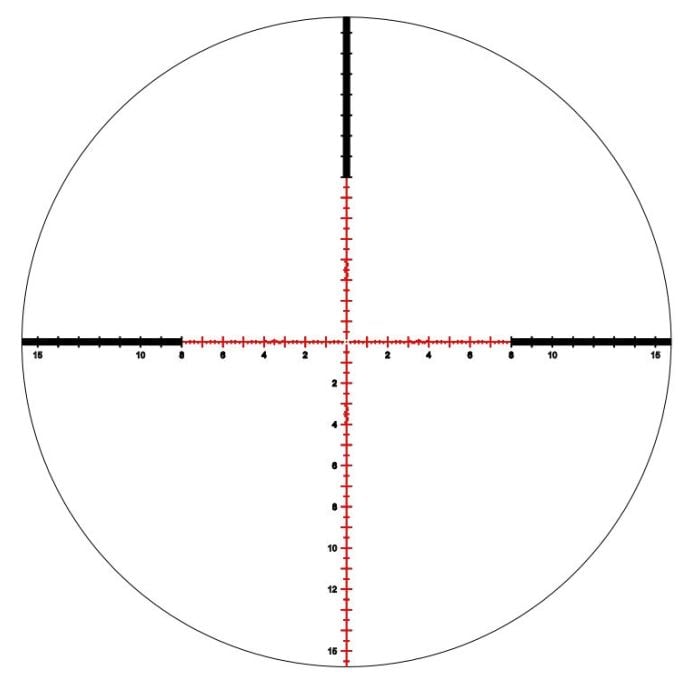

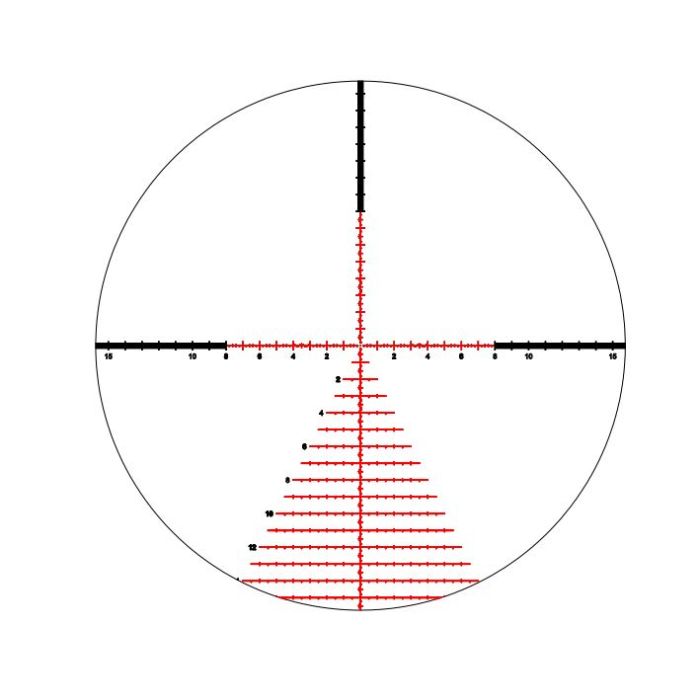

• Three Reticle Options: SKMR4, SKMR, MSR2/Ki: The K525i REFINED is available with three illuminated first focal plane reticles. The SKMR4 provides a detailed MRAD holdover grid for structured long-range reference. The SKMR — updated in REFINED to the latest Kahles reticle design standard — offers a cleaner layout suited to competition shooters who prefer less visual clutter at high magnification. The MSR2/Ki delivers a competition-proven reticle design with updated clarity for use across the full magnification range. All three are accurate throughout the entire 5–25× range.
• +7% Wider Field of View vs K525i (2025): The REFINED update introduces a 7% increase in field of view, providing 7.7 metres at 100 metres at minimum magnification. The wider FOV improves situational awareness during stage transitions and target identification, and supports faster follow-up target acquisition in PRS competition scenarios.
• Top-Mounted Parallax with Enhanced Wheel Geometry: The parallax knob sits below the elevation turret in Kahles' patented central arrangement, adjustable from 20 metres to infinity. The REFINED-updated wheel geometry provides improved grip for reliable operation with gloved hands or in wet conditions, without requiring the shooter to reach over or reposition to access the parallax control.
• 56mm Objective with Competition-Grade Optical Performance: The 56mm objective lens and 34mm mono-tube deliver an exit pupil of 9.5 mm at 5×, supporting strong image brightness at minimum magnification in variable light conditions. A true 5× zoom ratio maintains uncompromised optical performance across the entire adjustment range, with consistent image quality from minimum to maximum magnification.

About the K Series

The Kahles K Series is Kahles' flagship line of precision riflescopes, designed for demanding sport shooting, PRS competition, and long-range hunting applications. Built around a 34mm aluminium mono-tube and first focal plane optics, the K Series is engineered for shooters who require accurate reticle subtensions across the full magnification range, generous adjustment travel, and a reliable mechanical platform that holds up under repeated use and environmental stress.

All K Series models share a consistent design philosophy centred on ergonomics and shootability. The patented top-mounted parallax arrangement, CCW turret adjustment direction, and single-hand accessibility of all controls are standard across the family. Kahles' proprietary features — including INDEXSTOP, Revolution Indicator, EASYREAD labelling, and TwistGuard — are integrated across the lineup to provide reliable, repeatable mechanical performance under field and competition conditions.

The 2026 REFINED update modernises the core K Series models with a consistent set of improvements: 10 MIL per revolution windage turrets matching the established elevation design, an enhanced parallax wheel geometry for improved grip in all conditions, updated reticle designs aligned with current Kahles standards, and increased fields of view across individual models. The REFINED generation currently comprises four models: the K318i REFINED (3.5–18×50), K525i REFINED (5–25×56), K328i REFINED (3–28×56), and K540i REFINED (5–40×56).

About the Model (Kahles K525i 5-25x56)

The Kahles K525i is the mid-range precision model within the K Series, designed for competition shooters and long-range hunters who require reliable performance and consistent optical quality across a broad magnification range without the added size and weight of the higher-specification models. The 5–25× magnification range with a true 5× zoom ratio covers from a practical 5× minimum — offering a field of view of 7.7 metres at 100 metres for target identification and stage transitions — to a 25× upper end that delivers the image scale needed for precision shot placement and target reading at extended distances.

The 56mm objective lens, combined with the 34mm mono-tube and Kahles' proven optical system, delivers an exit pupil of 9.5 mm at 5× and maintains consistent image quality across the full magnification range. An eye relief of 95 mm provides comfortable clearance across a wide range of rifle platforms and shooting positions.

Three reticle variants are available, all first focal plane and illuminated. The SKMR4 (art. no. 10850/10851) provides a structured MRAD holdover grid for shooters who require detailed reference points across the field. The SKMR (art. no. 10852/10853) — updated in REFINED to the latest Kahles design standard — delivers a cleaner layout favoured by competition shooters who prefer reduced visual complexity at high magnification. The MSR2/Ki (art. no. 10854/10855) provides a competition-tested layout updated for the REFINED generation. All reticle variants are available with the windage turret on the left (for right-handed shooters) or on the right (for left-handed shooters).

Both the elevation and windage turrets operate at 10 MIL per revolution with 0.1 MRAD click values. Total travel is 29 MRAD elevation and 13 MRAD windage. All turrets incorporate INDEXSTOP, Revolution Indicator, and EASYREAD labelling. The patented TwistGuard on the windage turret prevents accidental adjustment without requiring any locking action. All turrets adjust counter-clockwise (CCW). The top-mounted parallax covers 20 metres to infinity with the REFINED-updated wheel geometry for reliable grip in all conditions. Overall length is 377 mm and weight is 960 g.

About Kahles

Kahles is one of the oldest riflescope manufacturers in the world, founded in Vienna, Austria in 1898. The company has produced riflescopes continuously for over 125 years and is currently part of the Swarovski Optik group, with manufacturing based in Austria. Kahles produces riflescopes for hunting and sport shooting, as well as binoculars, covering applications from driven hunting to PRS competition and extreme long-range precision shooting.

The K Series represents Kahles' flagship sport shooting lineup, developed in close collaboration with PRS and F-Class competitors to meet the demands of the highest levels of precision rifle competition. Kahles products are backed by a 10-year warranty and are manufactured to withstand the mechanical demands of sustained competition and field use.

Main Features

• Magnification: 5–25×
• Objective Lens Diameter: 56 mm
• Main Tube Diameter: 34 mm
• Reticle: SKMR4 (10850/10851) / SKMR (10852/10853) / MSR2/Ki (10854/10855)
• Reticle Position: First Focal Plane (FFP)
• Illumination: Yes
• Click Value: 0.1 MRAD
• Elevation Adjustment Range: 29 MRAD
• Windage Adjustment Range: 13 MRAD
• Turret Revolution: 10 MIL per revolution
• Turret Adjustment Direction: Counter-Clockwise (CCW)
• Elevation Turret: INDEXSTOP, Revolution Indicator, EASYREAD
• Windage Turret: TwistGuard, EASYREAD, Left or Right Side
• Parallax Adjustment: Top-Mounted, 20 m to ∞
• Field of View: 7.7–1.6 m @ 100 m
• Eye Relief: 95 mm
• Exit Pupil: 9.5–2.3 mm
• Dioptre Compensation: +2 / −3.5 dpt
• Length: 377 mm
• Weight: 960 g

Warranty

The riflescope is covered by a 10-year warranty.

In the Box

• Riflescope
• Cleaning Cloth
• Neoprene Scope Cover
• Kahles Patch
• Warranty Certificate
• User Manual
