Shield Sights Shield Mini Sight Compact SMSc

Products:

• Shield Mini Sight Compact SMSc

IMPORTANT!

PLEASE ENSURE ALL FIREARMS ARE CLEAR AND SAFE BEFORE CONTINUING

ENSURE THAT YOU KEEP TOOLS SAFE FOR FUTURE USE

Accessories:

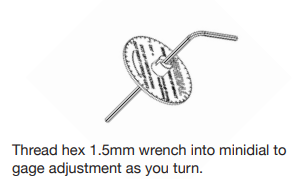

• Minidial
• CR2032 Battery
• 1° shim
• 2 x Button head M4x8mm screws
• 2 x Button head M4x10mm screws
• 2 x Hex Wrench tools 1.5mm, 2.5mm

General Care:

The lens has an anti-reflective coating. The lens may show some minor distortion if examined under intense scrutiny such as holding the sight up to a light and focusing on the lens. When you are actually shooting, the eye never focuses on the lens, so this distortion is not noticeable under live fire conditions. Be sure to blow away any debris before initiating the cleaning process and, when not in use, protect with sight cover.

IMPORTANT NOTICE TO PURCHASER

The following is made in lieu-of all warranties, expressed or implied, including the implied warranties of merchantability and fitness for purpose: Seller’s and manufacturers only obligation shall
be to replace such elements of the product proved to be defective. Before using, user shall determine the suitability of the product for its intended use, and user assumes all risk and liability
whatsoever in connection there with.

NEITHER SELLER NOR MANUFACTURER SHALL BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE, DIRECT, INCIDENTAL, OR CONSEQUENTIAL, ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT

IMPORTANT!

PLEASE ENSURE ALL FIREARMS ARE CLEAR AND SAFE BEFORE CONTINUING

Fitting and removal of the battery:

The SHIELD Mini Sight Compact uses a 3V Lithium battery type CR2032 which under average use can last 1 to 3 years. Replacement is required when the intensity of the dot appears greatly diminished against a bright background.

To change the battery remove magazine and ensure that the gun is clear and safe before proceeding and keep the gun pointed away from you whilst performing the following procedure. Use the hex wrench to remove mounting screws from the sight and detach the sight from the gun. Flip the sight upside down to expose the battery compartment.

When inserted, the positive side (+) of the battery should be upward and visible. The side of the battery should be pressed against the contacts before being inserted.

The negative (-) contact must be properly situated in its recess at the bottom of the battery cavity, should it be bent out of position it may touch the positive (+) side of the battery, and the LED will not work.

To remove a battery, use the 1.5mm hex wrench to prise the battery from its cavity with the wrench placed in the slot, which is part of one of the forward mount location holes.

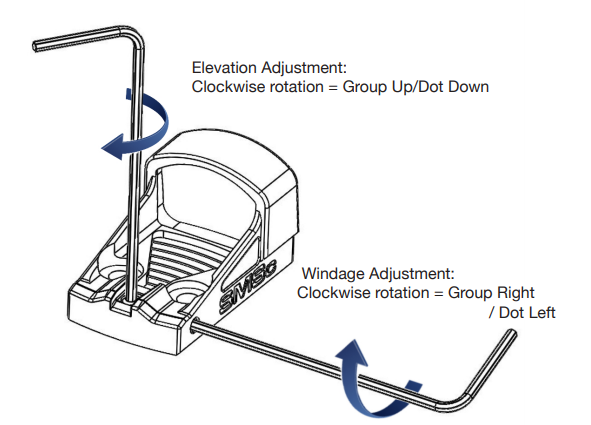

Zeroing the SMSc:

When zeroing the SMSc attention and care must be paid to the feel of the mechanism. The SMSc is a small, precision built piece of equipment and could be damaged if not handled correctly.
There is no need to use anything other than our provided tool. If a screwdriver with a handle is used the torque that can be applied could cause damage without the user noticing. The mechanism is designed to perform the exact job of allowing movement in only the elevation & windage and to stop any unwanted movement throughout its life that would result in zero shift.

DO NOT FORCE ADJUSTMENT, in either direction, once resistance is felt as this will damage the sight and void the warranty.

Elevation:

Turning the elevation screw Clockwise will move the dot Down, this will move the shot (group) UP. Turning the elevation screw Anticlockwise will move the dot UP, this will move the shot (group) DOWN.

The 1degree shim is provided to give extra range of elevation across a wide range of firearms (such as the 1911). Should you feel any resistance from the mechanism whilst zeroing the elevation please fit the shim between the sight and the mount with the thickest part at the rear.

Windage:

Turning the windage screw Clockwise will move the dot to the LEFT, this will move the shot (group) to the RIGHT. Turning the windage screw Anticlockwise will move the dot to the RIGHT, this will move the shot (group) to the LEFT.
