Guide TB630 Product description

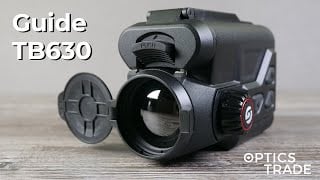

The Guide TB630 is a next-generation thermal clip-on attachment that redefines performance and affordability. Introduced in 2024 and built by industry veteran Guide Sensmart, this device is a successor to the TA series and showcases a complete redesign with a smaller, lighter form factor and a robust magnesium housing. The TB630 delivers premium sensor technology, intuitive controls, and a 35mm F1.0 lens in a compact package, all at an unbeatable price point for its class.

Key Features

High-resolution 640x480 VOx thermal sensor with 12µm pixel pitch
50Hz refresh rate for fluid imaging
Magnesium alloy housing with IP68 dustproof and waterproof protection
Shockproof up to 1000G – suitable for heavy calibers (up to .375 H&H)
AMOLED display with full HD resolution (1920x1080)
7 color palettes including white hot, black hot, sepia, green hot, and more
Video/photo capture with 64GB internal memory and recoil-activated recording
WiFi (2.4GHz/5GHz), Bluetooth, and USB-C connectivity
Hot Track, Outline Mode, and Scene Modes (Enhanced, Highlight, Nature)
Menu includes Super Energy Saving Mode, stadiametric rangefinder, and more
Powered by standard 18650 batteries – approx. 10h runtime
Compact: 128 x 79 x 79 mm; Weight: 529g with battery
Fast startup: approx. 5 seconds, 13 seconds till you can access the menu

About Guide Sensmart

Guide Sensmart, a subsidiary of China’s Guide Infrared established in 1999, is one of the global leaders in thermal and night vision technologies. Since 2016, Guide has focused on the civilian market, producing high-quality optics that combine affordability with cutting-edge innovation. The TB630 reflects their expertise and commitment to advanced thermal imaging for outdoor and tactical use.

What’s in the Box

Guide TB630 Thermal Clip-On Device
18650 battery (interchangeable type, 3200 mAh)
Battery charger
USB-C cable for charging and data connection
Protective lens cover
User manual

Warranty

The Guide TB630 includes a 3-year warranty, ensuring peace of mind and product reliability. Service and support are backed by Guide’s global network and strong after-sales reputation.

General properties

Manufacturer	Guide
Thermal Clip-On Series	Guide TB
Made in	China
In production since	2024
Warranty	3 years
SKU	TB630

Optical properties

Variable magnification	No
Magnification.	1.00 x
Minimal magnification.	1.00 x
Maximum magnification.	1.00 x
Lens diameter.	35.00 mm
Field of view...	218.00 m/1000m
Field of view (deg.).	12.50 °
Max. field of view...	218.00 m/1000m
Lens aperture	F 1.0
Range of detection.	1400.00 m

Thermal sensor properties

Thermal sensor type	VOx Uncooled
Thermal sensor resolution	640x512
Thermal sensor pixel count.	0.33 MP
Pixel pitch.	12.00 μm
NETD.	25.00 mK
Refresh Rate.	50.00 Hz

Display properties

Display type	AMOLED
Screen Resolution	1920x1080
Display pixel count.	2.07 MP

Recording properties

Image Capture	Yes
Video recording	Yes
Video output	Yes

Physical properties

Length.	128.00 mm
Width.	79.00 mm
Height.	79.00 mm
Weight.	440.00 g
Working temperature range	-20°C to +50°C
Power Supply	18650
Battery life.	10.00 h

Special features

Waterproof	Yes
Fogproof	Yes
Special features	Fogproof, Shockproof, Waterproof
Connectivity	Wifi
Tripod adaptable	No
Compass	No
Built-in rangefinder	No
Image stabilizer	No
Automatic Brightness Control	No

Most common questions (Q&A)

Need help? Not sure about something? Don't hesitate - ask our community! Our experienced community is here to help you with this question.

Do you still.stock these clip-ons? If so what is the price and do you ship to the UK?

by Ben

Dear Sir!

Yes, we have this product in stock.

Please note: We do not sell thermal imaging and night vision products outside of the EU, due to European export regulations.

For any additional questions or assistance, please contact us at [email protected]

Kind regards,

by Optics Trade team

Hi Price for tb 630 and What is the quality of the recording?

Thank you

by Jacob

The screen resolution is 1920x1080. Keep in mind that, as with all thermal devices, recorded videos may look slightly flatter than the live view due to compression and display differences. Image quality also depends on palette selection, sharpness settings, and weather conditions.

Thank you for your understanding. If there is anything else we can help you with, please feel free to contact us at [email protected].

Kind regards

by Optics Trade team
