Vector Optics Z5 1x26x28

• 26x28 mm Large Viewing Window: A wider viewing window than typical compact red dots gives a broader field of view, making it easier to keep both eyes open and transition quickly between targets.
• 3 MOA Red Dot Reticle: Small enough for precise aiming at distance, yet fast to pick up at close range, making the sight suitable for both quick target acquisition and more deliberate shots.
• 10 Illumination Levels with Motion Sensor: Brightness can be matched to changing light conditions, while the built-in motion sensor automatically powers the sight down after 2 minutes of inactivity and reactivates instantly on movement, extending battery life without the shooter having to manage it manually.
• Durable Tube-Style Housing: The closed, tube-style body built from 6061-T6 aluminum alloy protects the internal lens and electronics better than open reflex designs, at the cost of some added weight and size.
• Shock and Water Resistant Construction: Rated to 450G shock resistance and IPX4 water resistance, the sight is built to keep working after recoil and light exposure to rain or splashing.

ABOUT THE Z5 SERIES

The Z5 belongs to Vector Optics' tube-style red dot sight lineup, a category built around a closed, tube-shaped housing rather than the open frame used on smaller reflex sights. This design trades a little extra weight and bulk for greater protection of the lens and internal electronics, making tube-style sights a common choice for rifles, AR-platform firearms, and hunting or tactical applications where durability matters.

Sights in this category are built around a simple red dot reticle, side-loading battery compartments for easy servicing without removing the sight from the rail, and multiple illumination settings so brightness can be adjusted for anything from bright daylight to low-light conditions. Mounting is typically via a Weaver or Picatinny rail, keeping the sight compatible with a wide range of rifles and mounting systems.

Within this lineup, the Z5 is positioned as a compact option with a larger-than-average viewing window, aimed at shooters who want a fast, wide sight picture along with the ruggedness of a tube-style housing.

ABOUT THE MODEL (VECTOR OPTICS Z5 1x26x28)

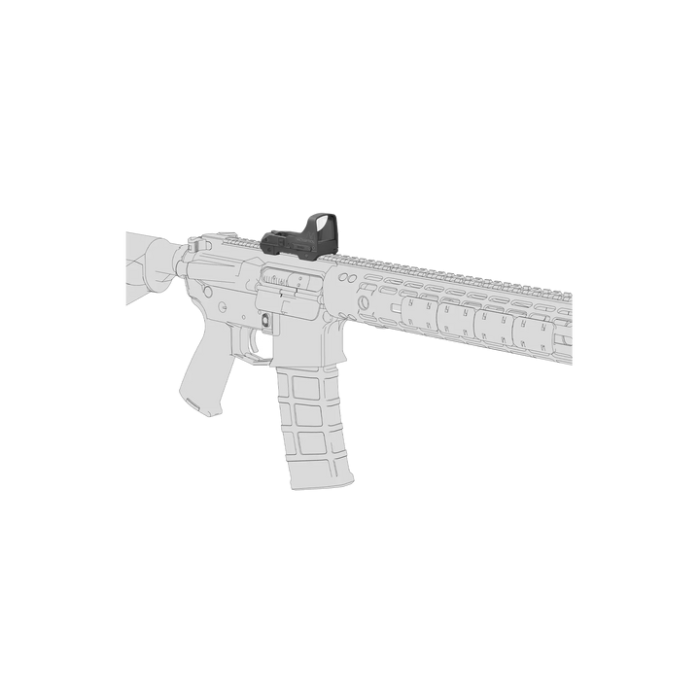

The Vector Optics Z5 1x26x28 is a compact tube-style red dot sight built for fast target acquisition on rifles and AR-platform firearms. Its 26x28 mm viewing window is larger than many comparable compact red dots, giving a wider field of view that makes it easier to stay on target while tracking movement or transitioning between multiple targets.

The sight uses a 3 MOA red dot reticle, small enough to support more precise aiming at distance while still being fast to acquire up close. Brightness is adjustable across 10 illumination levels, and an integrated motion sensor automatically shuts the sight off after about 2 minutes of inactivity, then reactivates instantly when the rifle is moved again, helping conserve battery life during long periods between shots.

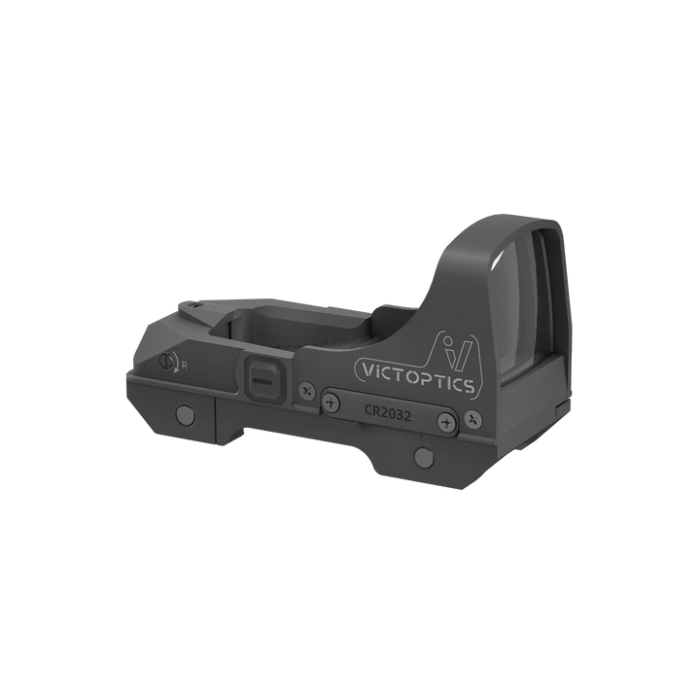

Total adjustment range is 85 MOA in elevation and 90 MOA in windage, giving enough travel to zero the sight across a range of mounting setups. The sight runs on a single CR2032 battery loaded from the side, so the battery can be changed without removing the sight from its mount or disturbing zero.

Built from 6061-T6 aluminum alloy with a matte black finish, the Z5 1x26x28 is rated IPX4 for water resistance and 450G for shock resistance, and mounts to a standard Weaver/Picatinny rail. At 78 mm long and 86 g, it adds minimal length and weight to the rifle while retaining the added durability of a tube-style housing.

ABOUT VECTOR OPTICS

Vector Optics is an optics manufacturer founded in 2007 and based in Shanghai, China. The company designs, manufactures, and distributes optical equipment for hunting, nature observation, competitive shooting, and defense applications.

The product range spans riflescopes, red dot sights and magnifiers, and nature observation equipment including binoculars, rangefinders, and spotting scopes, alongside mounting systems and accessories. Vector Optics has stated a goal of changing perceptions of optics manufactured in China by focusing on build quality, consistent optical performance, and competitive pricing across its product lines.

MAIN FEATURES

• Magnification: 1x
• Objective Lens Size: 26x28 mm
• Reticle: Red Dot, 3 MOA
• Illumination Levels: 10
• Auto-Off: 2-Minute Motion Sensor
• Elevation Adjustment Range: 85 MOA
• Windage Adjustment Range: 90 MOA
• Battery: 1x CR2032 (Side-Loading)
• Mounting Type: Weaver/Picatinny Rail
• Material: 6061-T6 Aluminum Alloy
• Finish: Matte Black
• Waterproof Rating: IPX4
• Shock Resistance: 450G
• Length: 78 mm
• Weight: 86 g

WARRANTY

The Vector Optics Z5 1x26x28 red dot sight is covered by a 5-year warranty.

IN THE BOX

• Vector Optics Z5 1x26x28 Red Dot Sight
• Plastic Wrench
• Hex Keys
• Cleaning Cloth
• User Manual
