Minox ZP8 1-8×24 Rifle Scope Instruction Manual

Product: Minox ZP8 1-8×24

Welcome to MINOX!

You’re about to join those who have long revered MINOX as an exceptional value in performance sport optics – that rare, understated blend of extraordinary features, quality, and durability for many years of reliable use.

These instructions are intended to provide you with the information you need to take full advantage of the many features we’ve built into your MINOX ZP8 riflescope. Information on proper adjustment and care is included.

Before using your MINOX ZP8 riflescope, please read the instructions carefully.

Thorsten Kortemeier
Managing Director

If you have additional questions or comments, please contact your authorized MINOX dealer or local MINOX distributor.

MINOX GmbH
Walter-Zapp-Str. 4
35578 Wetzlar
Germany

Phone: +49(0)6441 / 917-0
E-Mail: [email protected]
www.minox.com

MINOX ZP8

Minox ZP8 1-8x24 Rifle Scope Instruction Manual
Minox ZP8 1-8×24 Rifle Scope Instruction Manual

Overview

1. Objective
2. Battery compartment with screw cap
3. Illumination adjustment ring
4. Reticle adjustment (elevation)
5. Reticle adjustment (windage)
6. Magnification ring
7. Lock ring for diopter adjustment
8. Diopter adjustment

Scope of delivery

– MINOX ZP8 riflescope
– Battery, type CR 2032, 3 Volt
– Eyepiece lens cap
– Lens cleaning cloth
– Instructions

Magnification ring

To set the desired magnification, turn the power ring at the front of the eyepiece. Turning clockwise decreases the magnification and turning counterclockwise increases the magnification.

Minox ZP8 1-8x24 Rifle Scope Instruction Manual
Minox ZP8 1-8×24 Rifle Scope Instruction Manual

Note: If the illumination has been activated, it will automatically change from the reticle illumination in the first focal plane to the red dot in the second focal plane, depending on the selected magnification. This change takes place at about 2.5 x magnification.

The MINOX ZP8 has a wide magnification ring with a built-in cattail. With a bit of practice, the entire magnification range can be changed in one fluid turn, without having to reach around the magnification ring. This enables rapid magnification changes even if the area below the eyepiece is blocked, e.g. by iron sights.

Note: The image created by the riflescope’s optical system is formed at the focal plane within the objective, approximately level with the adjustment knobs. At very short viewing distances, it might appear that the magnification is more than 1x because the aiming eye is “seeing” the image about 30 cm closer to the target than the eye not looking through the scope. This occurs with all riflescopes with a 1x starting magnification and does not indicate a defect. At viewing distances greater than approx. 5 m this effect will completely disappear.

Diopter adjustment

The purpose of the diopter adjustment is to adapt the scope to the user’s eye and to compensate for individual visual acuity. If corrective glasses are worn while shooting, the glasses must also be worn when adjusting the diopter.

Minox ZP8 1-8x24 Rifle Scope Instruction Manual
Minox ZP8 1-8×24 Rifle Scope Instruction Manual

The MINOX ZP8 has a lock ring to prevent inadvertent turning of the diopter adjustment ring, e.g. when twisting the eyepiece protection cap into position. Turn the ring counter-clockwise to release the locking mechanism and clockwise to lock the diopter adjustment ring into place. This lock is designed to prevent accidental adjustment of the diopter. However, under use of great force, the lock ring can still be turned.

Unlike high-magnification riflescopes, it is advisable for riflescopes with 1x magnification to adjust the diopter when set at the lowest power and not at maximum 29 power in order to achieve optimal visual acuity for a fast target acquisition with both eyes open.

Turn the magnification to 1x and look through the scope at a distant target (> 50 m). The non-aiming eye should remain open so that both eyes are looking at the target. Now turn the diopter adjustment ring until both images appear the same size and the scope image is sharply focused. Once the correct setting has been made, you should have an undisturbed binocular image. This diopter setting can now be locked into place with the lock ring and will have to be adjusted again only with changing eyesight.

Parallax-free performance

Parallax is the visible movement of the reticle over the target image. This occurs when the observing eye moves vertically or horizontally behind the riflescope and the scope has not yet been adjusted parallax-free to the target distance. This movement is also called parallax error and is a displacement of the apparent position of an object viewed along two different lines of sight. Parallax occurs when the plane of the target image in the scope is not at the same distance as the plane at which the reticle is visible. This difference causes the reticle in relation to the target image to appear out of focus. The MINOX ZP8 is adjusted to be parallax-free at 200 m. At considerably shorter or greater distances and higher magnifications, the target image will appear slightly out of focus.

The following diagram shows the maximum possible deviation caused by parallax error if the pupil of the eye is located at the edge of the exit pupil. This error rarely occurs in practice, because at this misalignment, the edge of the image is already visibly shadowed.

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

At greater distances, this deviation is a maximum of 0.06 mrad, or about a half click of the reticle adjustment.

Reticle illumination and battery change

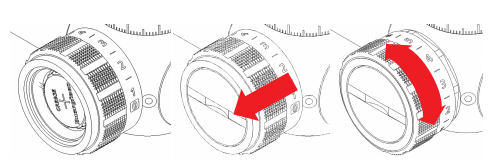

The illumination adjustment ring and battery compartment are on the left side of the center tube. The battery compartment is covered by a screw cap. To insert or replace the battery, turn the screw cap counterclockwise using a coin or suitable tool. Push on the edge of the battery with your fingernail to release it from the battery holder. Insert the battery with the minus pole towards the riflescope and screw the cap tightly into place. Use only new and undamaged CR 2032 batteries from a high-quality manufacturer.

The illumination adjustment is protected from unintentional turning when the ring has been pushed in towards the main tube.

To activate the illumination, pull the adjustment ring away from the main tube and turn the ring to the desired intensity between 1 and 9. The illumination can be switched off between each intensity level to enable a one-click reactivation of the previously set intensity. The adjustment ring is equipped with a click mechanism which can be locked at any position, even in an “off” position, by pushing the adjustment ring in towards the main tube of the riflescope.

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

The reticle illumination automatically deactivates after three hours, without change to the preselected intensity. This prevents the battery from draining if the illumination has been inadvertently left on. As soon as the ring has been turned in either direction, the illumination will be reactivated.

Note: This device contains a disposable battery. Please dispose the battery at a designated battery collection point. Further information can be obtained in your community or at the retailer where you purchased your riflescope.

Elevation and windage adjustment

The elevation and windage adjustment caps on the MINOX ZP8 can be locked at zero to avoid an unintentional turning of the reticle adjustment caps. If the white line partially wrapping around the base of the turret is visible, the adjustment cap is in the unlocked position. To unlock the elevation and windage adjustment caps, pull them away from the main tube – the distance is approximately 2.5 mm. Once the caps have been unlocked, the reticle can be adjusted.

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

The caps will remain in the unlocked position and cannot be locked until the caps have been turned back to zero and pushed in. Locking the adjustment caps can be done without visual control if you push lightly 32 down on them while turning them towards zero. They will automatically lock into place when you have reached the zero position.

Note: When unlocking the adjustment caps, the seals within the turrets may cause a slight vacuum and pull them back towards the turret if they are left at zero. As soon as the caps have been turned, this effect will not occur.

The click mechanism within the reticle adjustment turrets is engineered to perform in 0.1 mrad steps. One click of 0.1 milliradiants (mrad) is equivalent to 1 cm / 100 m or approx. 1/3 MOA. The riflescopes are available with “CCW” (counterclockwise) turrets. The direction of rotation indicates the direction in which the caps must be turned to change the point of impact “up” or “right”. The turrets are equipped with a Zero Stop, limiting the rotation of the adjustment caps. The zero stop is permanent and does not need to be adjusted. It is designed to stop the rotation of the elevation a few clicks below the zero position and to limit its rotation to one complete turn. To zero your scope to your weapon, adjust the elevation and windage caps until point of impact matches point of aim. When impacts are “low”, adjust the elevation cap towards “high”, when impacts are “left”, adjust the windage cap towards “right” and vice versa. The caps can be loosened using a 2 mm allen key and tightened again after turning the caps to the zero position. When the caps have been loosened, the clicks are not audible, indicating that the caps have been successfully loosened from the turret.

Note: If while zeroing your scope you have reached the Zero Stop (for example if the shots are repeatedly too high and the elevation cap cannot be turned “down” any further), loosen the allen screws on the cap and turn it several mrads in the opposite direction. Push the cap down and tighten the screws again. You will now have more adjusting range to achieve the desired point of impact. The same procedure can be carried out with the windage turret.

To set the caps to zero after zeroing your scope, slightly loosen the allen screws with a 2 mm allen key. About half a turn should be enough. Turn the caps to the zero position, push them down to the “locked” position and tighten the screws again. It is advisable to use the shorter end of the key to avoid too much torque when tightening the screws.

Note: If the screws have been inadvertently loosened too much, the cap can be removed from the scope. To reinstall the cap, place it onto the turret, turn it to zero, push it down to the “locked” position and tighten the screw.

Reticle subtensions

The reticle in the MINOX ZP8 is found at the 1st focal plane. This means that the reticle is magnified at the same ratio as the target image and that the reticle
subtensions remain unchanged in relation to the image. Independent of the magnification, the reticle can be used to accurately determine range and trajectory compensation. All available reticles are equipped with an additional red dot illumination at the 2nd focal plane. If the reticle illumination has been activated, the red dot is automatically activated if the magnification has been turned below 2.5x. The first three illumination levels are designed for use with night vision devices, and the highest levels for use in daylight.

Note: The illumination at the 1st focal plane is designed for twilight and nighttime use and not for use in daylight.

MR10+

The MR10+ reticle in the ZP8 is equipped with special ranging marks to quickly determine the range to targets of known size. At ranges between 300 m and 800 m, the distances can be determined directly and without calculating, with a target width of 50 cm or target height of 30 cm, 70 cm and 1 m.

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

Eyepiece lens cap

The MINOX ZP8 comes with a flip-up eyepiece lens cap. The cap is attached to the eyepiece using an adapter ring. To attach the protection cap to the ey piece, push the lens cap onto the adapter ring until it snaps into place. To remove the cap, close it and grab it at the hinge and pull it from the adapter ring.

The cap can be turned to the desired position on the adapter ring via click stops. When the cap is completely open, it will snap into place and lie closely against the eyepiece.

Care and maintenance

The required maintenance of the tube and controls is limited to the removal of dust and dirt that can affect the operational elements of the riflescope. Dust, sand and dirt should be rinsed off under running water and then carefully patted dry with a clean cloth.

Note: Do not make any changes to the riflescope other than those described in these instructions. Refrain especially from unscrewing or removing elements as the seals can be damaged or mechanical functions of the riflescope adversely affected, thus voiding the warranty.

The lenses should be protected by caps or similar to avoid damage and soiling when the riflescope is not in use. The lenses and seals must not come into contact with oil or solvents. When cleaning your weapon, make sure that the riflescope is protected from contact with cleaning agents.

When cleaning the lenses with commercial lens cleaning products, the manufacturer’s instructions must be observed. Cleaning cloths and pens must be clean and free of particles as these may cause damage when rubbed onto the lens surfaces. Coarse dirt can be rinsed off under running water and the lenses gently patted dry with a soft cloth. The lenses should only be cleaned when absolutely necessary.

Note: When rinsing the riflescope under running water, avoid strong jets of water as this may damage the seals.

Mounting

If you choose to mount the riflescope yourself, please carefully follow the manufacturer’s instructions for the mounts.

The MINOX ZP8 has a constant eye relief of 90 mm so that mounting the scope in the correct position will provide a full field of view without having to shift the head back and forth after magnification changes.

Note: If possible, avoid the use of mounts or a rail with a forward tilt, as this will lead to a decentering of the reticle within the adjustment range and the target image will be shifted vertically. This adversely affects binocular vision at 1x magnification. The internal adjustment range of the reticle is large enough that even without a canted mount or rail, the full adjustment range of 10 mrad can be used.

Troubleshooting

Fogging

Internal lens surface fogging is the result of broken seals allowing moisture to enter the scope. If the seal has failed under normal use, MINOX will repair or replace the scope in accordance with the MINOX warranty terms. However, fogging is most commonly the result of scope disassembly, which is not covered by the MINOX warranty. With any internal fogging, return the scope to your authorized MINOX dealer or the MINOX service center for repair. External lens surface fogging is a common problem under certain temperature and humidity conditions. It cannot be avoided. Anti-fogging solutions may offer some relief, but simply wiping with a clean cloth is the most effective treatment. Avoid breathing on the eyepiece lens in cold weather.

Serial number

The serial number of your MINOX ZP8 can be found on the underside of the eyepiece. Enter this serial number into the online registration form for the MINOX Comfort Service (or MINOX Lifetime Total Coverage Warranty for USA and Canada customers) at www.minox.com/service

Service

Avoid unnecessary expense and delays by first checking all the user information and troubleshooting suggestions before returning your scope for service. If service is required, follow these instructions to send your MINOX scope directly to the Service Center:

1. Pack the scope with adequate packing materials to prevent damage.

2. Ship your scope prepaid and insured to your authorized MINOX Dealer or local MINOX distributor.

USA:
Blaser USA
403 East Ramsey, Suite 301
San Antonio, Texas 78216

Germany:
MINOX GmbH
Walter-Zapp-Str. 4
D-35578 Wetzlar

GB:
Blaser Sporting Limited
Unit 12
The Pines
Broad Street
Guildford
Surrey
GU3 3BH

3. Include a detailed description of the problem along with a copy of the original sales receipt.

Please send your MINOX riflescope to authorized dealers in all other countries. You can find these addresses under: www.minox.com/service

Conditions of Warranty

With the purchase of this MINOX riflescope you have acquired a product that has been manufactured and inspected in accordance with especially high quality standards.

For this product we provide a legal warranty of 2 years, in accordance with the following regulations from the day of purchase at an authorized dealer:

1) During the warranty period we shall compensate complaints based on faulty manufacture with repair, replacement of defective parts or by replacement with an identical flawless product at our own discretion. Consequential claims, regardless of manner or legal argument in connection with this warranty, will not be accepted.

2) Claims under warranty are null and void if the defect has been caused by improper handling – which also can include the combined use of non MINOX accessories – if the MINOX product is serviced by unauthorized persons or workshops, or if the serial number has been made unreadable.

3) Warranty claims can only be made by submission of the printed receipt as proof of purchase from an authorized dealer.

4) When submitting claims under warranty, please return the MINOX riflescope together with the proof of purchase and a description of the complaint to MINOX GmbH in Germany, or the nearest MINOX dealer.

5) Tourists may, if necessary, make use of the MINOX dealer in the country in which they are travelling (within the warranty terms of MINOX GmbH) by presenting the printed proof of purchase.

Extended MINOX Warranty Service
MINOX Comfort Service/MINOX Total Coverage
Warranty (for USA and Canada customers)

Take advantage of the extended MINOX product warranty and register your MINOX product. Find out more at www.minox.com/service

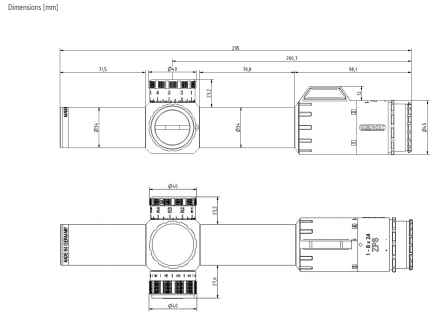

Technical data

Minox ZP8 1-8x24 Rifle Scope Instruction Manual

Field of view low power 112 ft. at 100 yds. / 37.5 m at 100 m
Field of view high power 147 ft. at 100 yds. / 4.8 m at 100 m
Diopter adjustment -3 / +2.5 dptr.
Eye relief 90 mm (3.5″)
Exit pupil low power 10.3 mm
Exit pupil high power 3 mm
Elevation travel 10 mrad
Windage travel +/- 5 mrad
Click value 0.1 mrad
Parallax setting 200 m (218.7 yds.) fixed
Length 295 mm (11.6″)
Weight 695 g (24.5 oz.)
Main tube diameter 34 mm
Position of reticle 1 st focal plane*
Available reticles MR10+, MR10, A8-D
Reticle ilumination functions Auto-off after 3h; off between illumination levels
Order number 66590 (MR10+)

66591 (MR10)

66592 (A8-D)

* at 1x to 2.5x magnification, a daylight red dot will be activated at the 2nd focal plane. Design, features and supply are subject to change.
