Athlon Neos Riflescope Instruction Manual

• Athlon Neos

Table of Content:

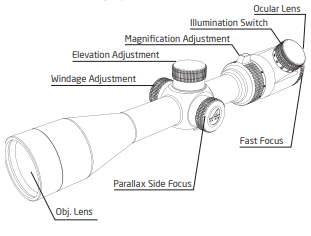

1. Mounting Your Athlon Riflescope

a) Scope Dimensions
b) Focusing the Scope
c) Adjustment for Maximum Eye Relief
d) Bore Sighting
e) Zeroing the Scope
f) Base adjustment and shimming

2. Reticles
3. Maintaining Your Riflescope
4. Trouble Shooting Tips

Congratulations on purchasing an Athlon Riflescope. Athlon is the ancient Greek word for “Prize” or “Medal.” We think that with the purchase of your Athlon product you have won the best “prize” on the market today. Great Quality while still being a great value.

1. Mounting Your Athlon Riflescope

CAUTION: BEFORE MOUNTING A RIFLESCOPE BE SURE THAT THE FIREARM IS NOT LOADED, HAS ACTION OPEN AND THE MUZZLE POINTING IN A SAFE DIRECTION. SAFE FIREARM HANDLING PROCEDURES NEED TO BE PRACTICED AT ALL TIMES.

To achieve the best performance from your rifle and your Athlon Scope, your scope must be mounted properly. If you are unfamiliar with proper procedures to mount a scope, we highly recommend to have the scope mounted by a qualified gunsmith.

Athlon recommends you use high quality, appropriately sized rings and bases matched to your rifle when mounting your scope on the rifle. Please note that most ballistic charts use 1.5” as the standard mounting height for scopes when publishing ammunition information. Higher mounting height will have an effect on the impact point of the bullet. Mount your scope as low as you can without it touching the rifle or impeding the operation of the action of the gun. Attach bases and the bottom of the rings to your rifle. Be sure to follow the manufacturer instructions supplied with the rings and mounting base.

a) Scope Dimensions

Riflescope Model	L1	L2	L3	L4	L5	L6	D1	D2
3-12×40 SFP	12	3.6	4.8	3.7	1.9	1.8	1.8	1.9
4-16×40 SFP	12.9	3.5	5.8	3.7	1.9	1.8	1.8	1.9
6-24×50 SFP	13.9	4	6.2	3.7	1.9	1.8	1.8	2.2
3-9×40 SFP	12.5	3.3	5.7	3.5	2.3	1.6	1.6	1.9
4-12×40 SFP	12.5	3.3	5.7	3.5	2.3	1.6	1.6	1.9
6-18×44 SFP	13.5	3.7	6.3	3.5	2.3	1.6	1.6	2

b) Focusing the Scope

The purpose of the Fast Focus eyepiece is to focus the reticle in the scope to your eyes. For a fast focus eyepiece, just simply rotate the fast focus ring at the end of the eyepiece in either direction to get a perfect clear reticle while looking through the scope pointing at a flat plane surface. This is important to do prior to mounting.

c) Adjust for Maximum Eye Relief

i. You need to adjust the scope for maximum eye relief before tightening of the scope rings, to avoid injury from recoil.

ii. With the scope on lowest magnification, move the scope forward as far as possible in the rings.

iii. With the rifle in normal shooting position, look through the scope and slowly slide the scope back towards you. When you finally see the full field of view with sharp and clear edges, stop. Make sure the scope has not rotated so the reticle is tilted.

iv. Rotate the scope until the elevation dial is at the top of the scope and the vertical crosshair of the reticle matches the vertical axis of the rifle. This will be easier if you find a vertical reference such as the straight edge of a building or a telephone pole. Make sure the scope has not moved forward or backward while doing this.

v. Tighten the rings per the manufacturer’s instructions

d) Bore Sighting

Bore sighting is a preliminary procedure to achieve proper alignment of the scope with the rifle’s bore.

i. The initial bore sighting of the scope can be at short range of 50 yards. This is easier than trying to bore sight at 100 yards and will get you on the paper at that distance, so to save time and money at the shooting range. We highly recommend using a bore sighter, but make sure to follow the manufacturer’s instructions.

ii. This can also be done by removing the bolt and sighting through the barrel on a bolt action rifle. Make sure the rifle is placed solidly on a bench and the bolt is removed. You
can then sight through the bore and center the target inside the barrel (Note: Many ring and base sets have some kind of windage adjustments. Use these external adjustments first
before using the scopes internal windage adjustments). With target centered in the bore, make windage and elevation adjustments until the reticle crosshair is also centered over the
bulls eye.

e) Zeroing the Scope

IF A LASER BORE SIGHTING OR ANY OTHER SIMILAR DEVICE INSIDE THE BORE WAS USED, IT MUST BE REMOVED BEFORE FIRING. AN OBSTRUCTED BORE CAN CAUSE SERIOUS DAMAGE TO THE GUN AND POSSIBLE INJURY TO THE SHOOTER.

i. Set parallax side focus knob to the 100 yard position and variable-power scopes to highest power. Ideally set the rifle on a two or three holding point gun rest, and then fire three rounds at a target 100 yards away. Observe the bullet holes on the target and calculate how far those bullet holes are off the center of the target, and then adjust windage and elevation knobs to move the center of the reticle up, down, left or right.
Fire another three rounds, then observe and adjust. Repeat this step as necessary until the three round bullet holes are perfectly aligned with the center of the target.

ii. Setting Windage and Elevation Athlon Talos and Neos scopes have capped windage and elevation turret knobs. Once a rifle has been sighted in, simply remove the caps and take out the turret knob by unscrewing the top locking screws. Put the turret knob back on with zero line aligned with the vertical mark below the turning knob, then tighten the screw to lock it in. By zeroing the rifle at 100 yards, the shooter can calculate how many clicks of adjustment are needed for different distances or wind conditions. After shooting, the shooter can quickly reset the riflescope back to 100 yards by turning the knobs back to zero.

Athlon scopes have several options available, 1/4 MOA, and 1/10 MIL, for the click values of elevation and windage adjustment depending on different configurations of scopes and
reticle selections. MOA, a unit of angular measurement, is defined as a minute of angle, a minute is 1/60th of one degree and 1/21600th of a circle. One MOA equals 1.047-inch (rounded down to one inch) at 100 yards, two inches at 200 yards and to ten inches at 1000 yards. 1/4 MOA per click takes four clicks to move point of impact one inch at 100 yards and 1/8 MOA per click takes eight clicks at 100 yards. MIL, which is short for Milliradian and another unit of angular measurement, is defined as 1/1000th of a radian (6.2832 radians in a circle) and 1 MIL equals to 3.438moas and 3.6 inches at 100 yards, 7.2 inches at 200 yards, and to 36 inches at 1000 yards. 1/10 MIL per click takes 10 clicks to move point of impact 3.6 inches at 100 yards.

Knowing the click value and the number of clicks needed for different distance is critical to dial in elevation and windage adjustments based on the rifle ballistics and wind velocity.

f) Base Adjustment and Shimming

Athlon riflescope reticle comes centered from the factory. If you need to make additional adjustments when initially sighting in your scope, many ring and base setups allow you to adjust windage at the base mount. If possible, use these adjustments for initial windage change. Though not usually necessary, you can correct the elevation adjustments using shims under the base mount. Assuming typical ring spacing of 3.25 inches, a shim of .001 inch will yield one inch at 100 yards, two inches at 200 yards, and so on. Shim under the front base for more down adjustability and under the rear base (nearest shooter) for. You
may use shims under the front base to achieve more downward adjustability or place under the rear base (nearest shooter) to achieve more upward adjustability.

2. Reticles

The reticle in your Athlon Talos and Neos riflescope fits into second focal plane (SFP) reticles. This is according to where the reticle is located within the riflescope. Most American hunting riflescopes have been traditionally equiped with SFP reticles.

Second focal plane (SFP) reticles are located near the eyepiece behind the image erecting and magnifying lenses. This style of reticle does not visually change in size when you change the magnifica-tion. The advantage of an SFP reticle is that it always maintains
the same ideal visual appearance. If your reticle style has subtentions that help you determine where to aim depending on distance from target and windage, it will have been engineered for only one particular magnification. Subtensions of reticles in Talos scopes are
valid at 12x, 16x, and 18x depending on different model ( Midlot reticle subtends at 10x). Subtensions of reticles in Neos scopes are valid at 9x, 12x, and 18x.

Please see the following reticle subtensions and find more details from reticle instruction manual to fully utilize the features and maximize the performance of the reticle design. You can download the reticle instruction manual from the product specifications tag of the product page on www.athlonoptics.com

CENTER X	A1	A2	C1	C2	CONFIGURATION
SUBTENSIONS IN MOA	.18	.7	4,5	9	3-12×40 TALOS
	.22	.9	6,5	13	3-9×40 NEOS
	.18	.7	4,5	9	4-12×40 NEOS
	.12	.5	3,2	6,5	6-18×44 NEOS

Athlon Neos Riflescope Instruction Manual

BDC 600 IR	A1	A2	B1	B2	B3	C1	C2
SUBTENSIONS IN MOA	.3	.8	.8	1	1,2	1,5	3,5
	C3	C4	C5	C6	C7	C8	D1
	6,25	9,5	13,6	4	1	2	1

ATMR1 SFP IR MIL	A1	A2	B1	B2	B3	C1	C2	C3
SUBTENSIONS IN MIL	.02	.5	.3	.6	.8	.25	.5	1

BDC 500 IR	A1	A2	B1	B2	C1	C2
SUBTENSIONS IN MOA	.3	.8	.8	1	1,5	3,5
	C3	C4	C5	C6	C7	D1
	6,25	9,5	13,6	1	2	1

BDC 22 RIMFIRE	A1	A2	C1	C2	C3	C4	C5	D1
SUBTENSIONS IN MOA	.25	.8	2,3	5,3	8,8	12,5	5	1

a) Scopes with Illuminated Reticles

ATHLON offers variable brightness settings depending on your scope. The numbers on the illumination switch indicate different brightness settings and the zero indicates “Off” position of the illumination. The illumination is powered by a lithium CR2032 3V battery. Remove the battery chamber cap by turning it counter-clockwise and then set the battery with the positive (+) side facing up. Reinstall the cap by turning it clockwise, DO NOT
OVER-TIGHTEN.

3. Maintaining Your Riflescope:

Disassembling or cleaning the scope internally will void the warranty. If the scope requires repairs, please refer to the warranty section for complete instructions.

The external optical surfaces should occasionally be wiped clean. Use the lens cloth provided or an optical quality lens paper to wipe out dust or dirt on the external lens surface. If large sand particles or heavy dirt contamination is observed, remove using soft brush or by blowing them away. Apply lens cleaning liquid before wiping off. Always keep the protective lens covers in place when the scope is not in use to avoid dust collecting on the surface of the lenses. Store the unit in a low-humidity environment.

4. Trouble Shooting Tips – Inaccuracy Issues

i. Check scope mounting and make sure there is no movement when pulling the scope by hands. Tighten the mounts if there is any movement observed.

ii. Use a bench rest or sandbag to support the barrel and stock when making windage and elevation adjustments. This will help eliminate movement.

iii. It is recommended using the same type of ammunition with same weight.

iv. Check your rifle stock, as a loose stock changes the point of impact.

v. Make sure your rifle chamber and barrel are clean

vi. Make sure rifling of the barrel is not damaged and no excessive grease inside the barrel

vii. For any technical related questions, please contact Athlon Optics at [email protected] or call toll free 1-855-913-5678

THE ATHLON GOLD MEDAL LIFETIME WARRANTY*

Your Athlon product is not only warranted to be free of defects in materials and workmanship for the lifetime of the product. Athlon will also repair or replace, at no charge to you, your product if you should damage it through normal use. No receipt is needed, no
registration is required. This is a commitment that Athlon Optics will be the best product you can buy for your money.

*This warranty does not cover damages caused by deliberate damage, misuse, theft or maintenance provided by someone other than the Athlon Authorized Service Department.
