Hikmicro Lynx LH19 2.0 Product description

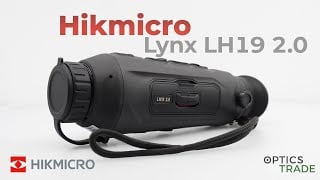

The HikMicro Lynx 2.0 LH19 is a compact, entry-level thermal monocular in the second generation of the popular Lynx series. Designed for close to mid-range observation, it offers excellent image detail thanks to a high-sensitivity thermal sensor and a crisp OLED display—all in a rugged and pocket-sized body. With a wide field of view and a starting magnification of 1.8×, the LH19 2.0 is ideal for scanning terrain and detecting heat sources quickly and clearly.

Key Features

Sensor: VOx uncooled thermal sensor, 384 × 288 resolution
Pixel Pitch: 12μm | Frame Rate: 50Hz
NETD: <20mK (@25°C, F1.0) – outstanding sensitivity for fine detail detection
Lens: 19mm, F1.0 Germanium with manual focus
Detection Range: Up to 900 meters
Field of View: 24m × 18m @ 100m (wide FOV for area scanning)
Magnification: 1.8x optical, up to 14.4x digital (8× zoom)
Display: 0.39" OLED, 1024 × 768 resolution
Start-Up Time: Under 5 seconds
Auto Screen-Off: Motion sensor-based sleep mode conserves battery
Recording: Built-in 16GB memory for photo and video capture
Connectivity: USB-C and Wi-Fi; supports the HikMicro Sight app
Battery: Powered by a single 18650 Li-ion battery (widely available & interchangeable)
Runtime: Approx. 6.5 hours per battery (2 batteries included)
Charging: USB-C port for direct charging or use with a power bank; high-quality dual battery charger included (no wall adapter)
Housing: Compact and ergonomic, likely aluminum core with full rubber coating for grip
Protection: IP67 – waterproof and dustproof (submersible to 1m for 30 minutes)
Weight: 280g without battery, 330g with battery
Dimensions: 172.5 × 56.0 × 60.8 mm

About HikMicro

HikMicro is a leading global manufacturer of thermal and night vision optics. Known for bringing professional-grade features to even their entry-level products, HikMicro delivers excellent value, performance, and reliability. The Lynx 2.0 LH19 continues this tradition, making thermal imaging accessible without sacrificing quality or usability.

What’s in the Box

HikMicro Lynx 2.0 LH19 Thermal Monocular
2x 18650 Rechargeable Batteries
Dual-Battery Charger (high-quality)
USB-C Cable
Lens Cover
Cleaning Cloth
Carrying Strap
Protective Transport Case
User Manual

Warranty

The HikMicro Lynx 2.0 LH19 includes a 3-year warranty and is supported by HikMicro’s official EU service center.

General properties

Manufacturer	Hikmicro
Thermal Monocular Series	Hikmicro Lynx 2.0
Made in	China
In production since	2024
Warranty	3 years
SKU	HM-LH19-2.0

Optical properties

Variable magnification	Yes
Magnification.	1.80 x
Minimal magnification.	1.80 x
Maximum magnification.	14.40 x
Diopter range	-5/+3 dpt
Lens diameter.	19.00 mm
Field of view...	720.00 feet/1000yards (240.00 m/1000m)
Field of view (deg.).	13.70 °
Max. field of view...	720.00 feet/1000yards (240.00 m/1000m)
Eye relief.	0.79 inch (20.00 mm)
Close focus.	6.23 feet (1.90 m)
Lens aperture	F 1.0
Range of detection.	984.25 yard (900.00 m)
Optical zoom	No

Thermal sensor properties

Thermal sensor type	VOx Uncooled
Thermal sensor resolution	384x288
Thermal sensor pixel count.	0.11 MP
Pixel pitch.	12.00 μm
NETD.	20.00 mK
Refresh Rate.	50.00 Hz
Calibration mode	Automatic, Manual
Temperature sensitivity.	20.00 mK

Display properties

Display type	OLED
Screen Resolution	1024×768
Display pixel count.	0.79 MP

Recording properties

Image Capture	Yes
Video recording	Yes
Video output	Yes

Physical properties

Length.	6.79 inch (172.50 mm)
Width.	2.20 inch (56.00 mm)
Height.	2.39 inch (60.80 mm)
Weight.	9.95 oz (282.00 g)
Working temperature range	-30°C to +55°C
Power Supply	Rechargeable Battery
Battery life.	6.50 h

Special features

Waterproof	Yes
Fogproof	Yes
Special features	Fogproof, Shockproof, Waterproof
Connectivity	Wifi
Tripod adaptable	Yes
Compass	No
Built-in rangefinder	No
Image stabilizer	No
